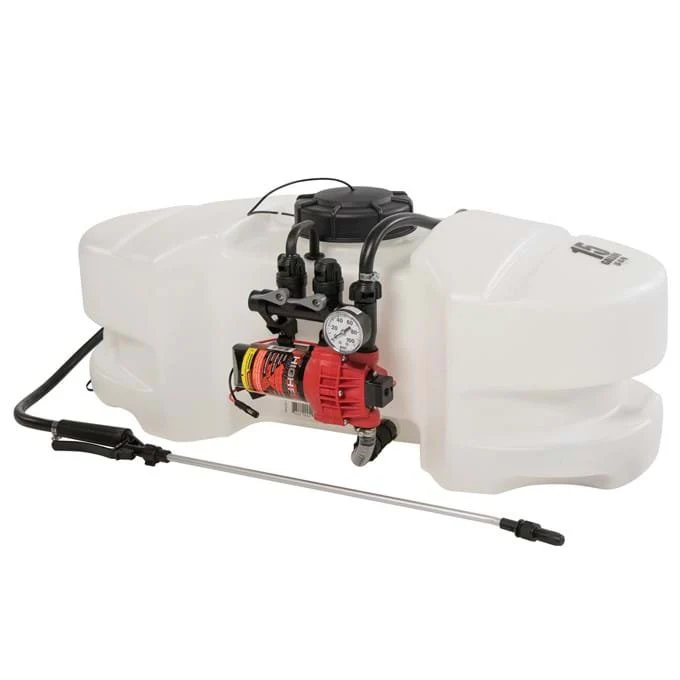

Fimco LG25PM ATV Spray Tank 95L – Including 2, 5 or 7 Nozzle Boom Kit
95 L spray tank for quad bikes, ATV, mules and medium tractors
9 L/min (2.4 gallon/min) 60 Psi High Flo spray pump - big enough for all spray booms reaching out to 3.8m width

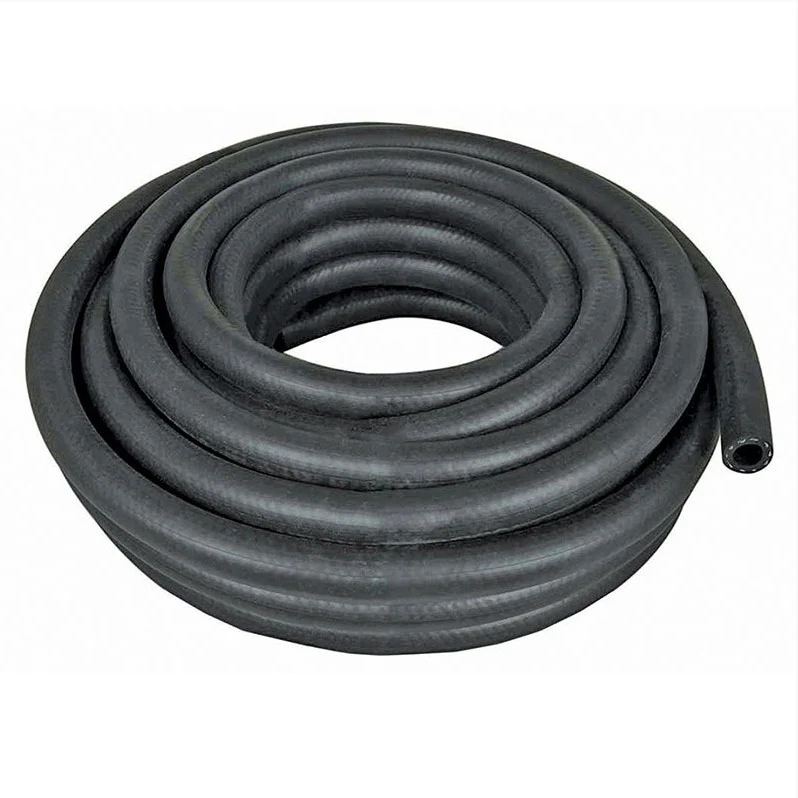

Includes 5m flexible hose & hand lance for demounted and spot spraying sprays out to 10m
Fimco LG25PM ATV Spray Tank Key Points:

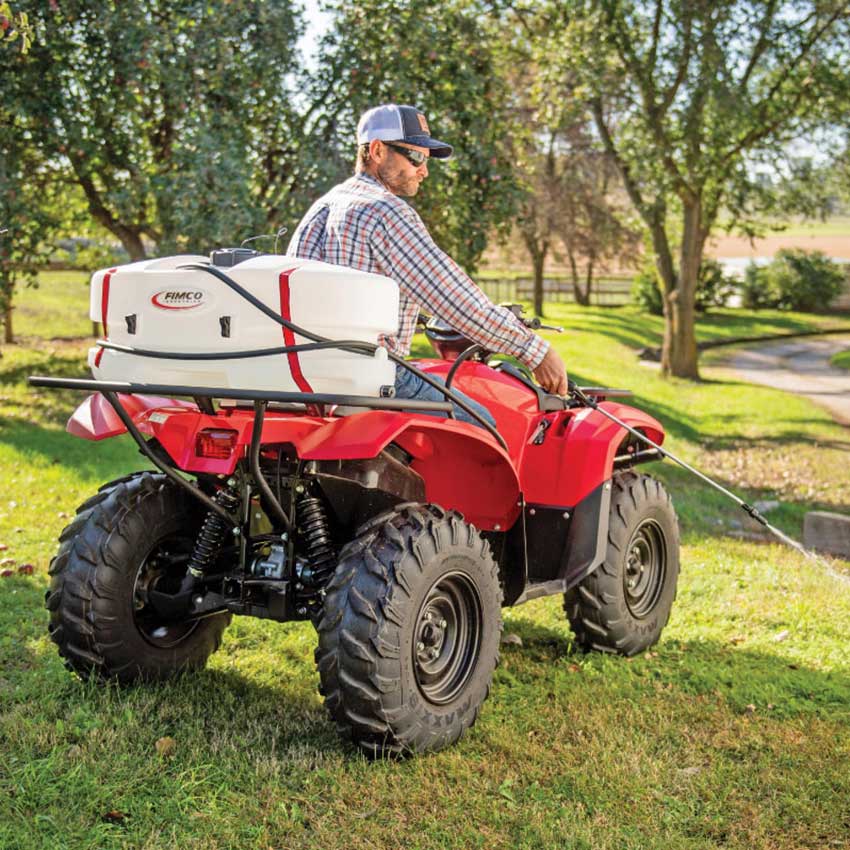

- Fits on the front or rear panniers of a quad bike or ATV with ratchet strap (not supplied)
- 125mm tank lid for easy filling and drain plug for easy emptying
- Suitable for adding: 2 nozzle, 5 nozzle & 7 nozzle quick release booms for paddock, lawn and field spraying
- Crocodile clips for easy attachment to vehicle battery and an in-line switch for on/off
- Visual, adjustable pressure gauge and handy clip for neat spray handgun storage on the tank

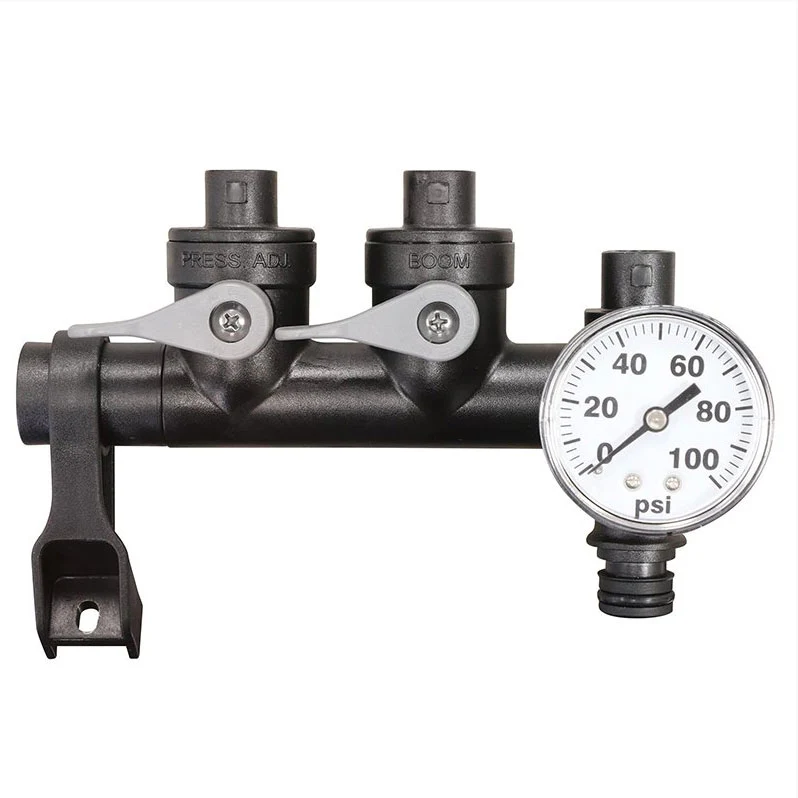

- Pump manifold for selecting between boom & hand lance
Sprayer Electrical System Requirements:
- Electrical connection: 12V DC

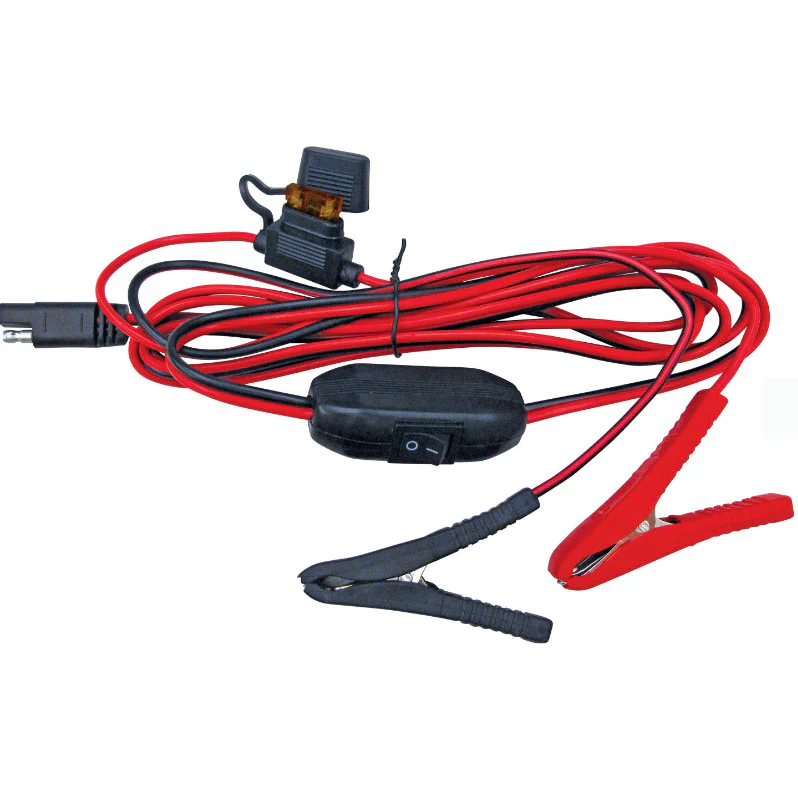

- 4m quick connection electrical leads with in-line on/off switch
Sprayer Specification:
- Maximum flow: 9 L/min
- Maximum pressure: 60 PSi
- Maximum tank capacity: 95 litre
- 1000 (length) x 370 (width) x 400 (height)

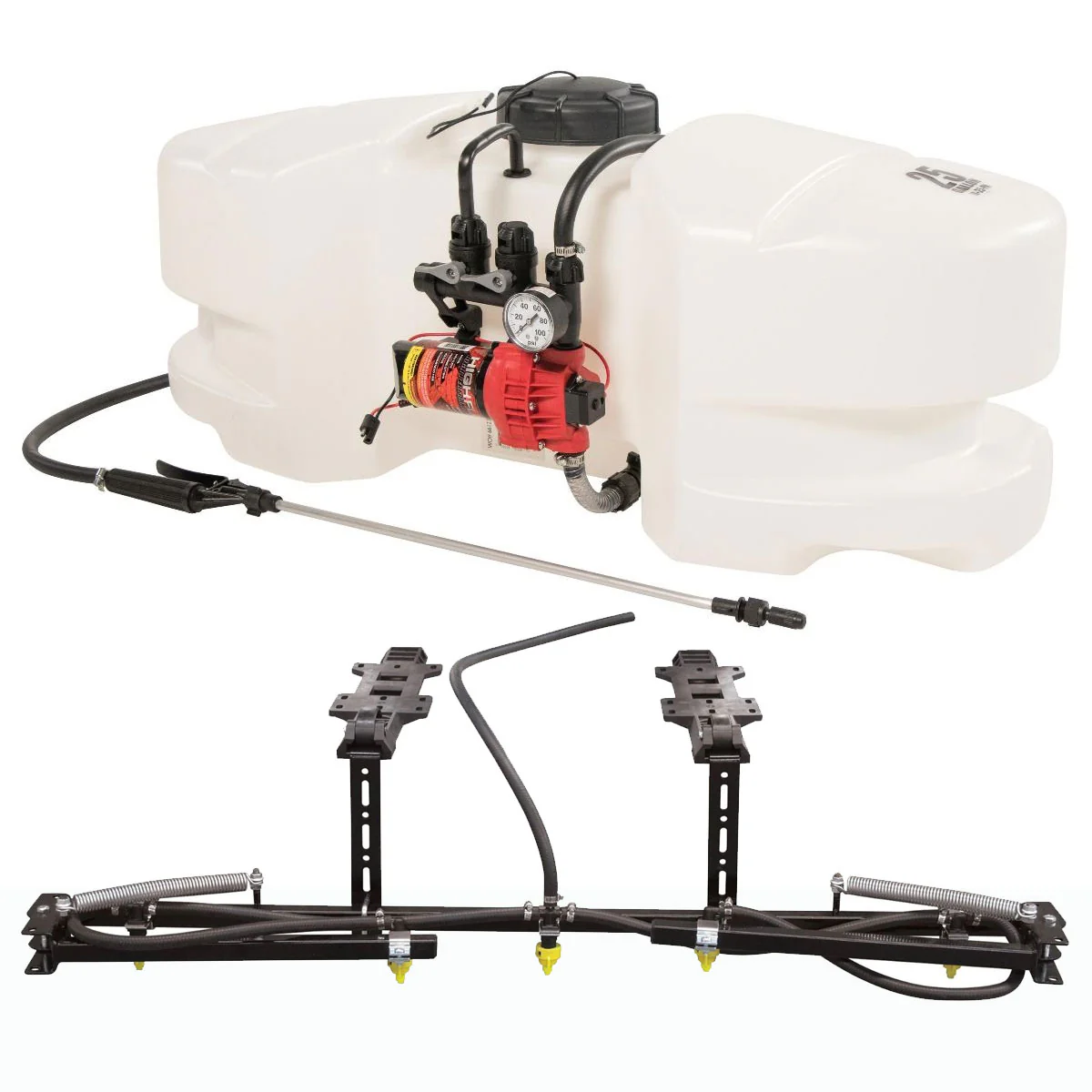

Two, five and seven nozzle boom key notes:

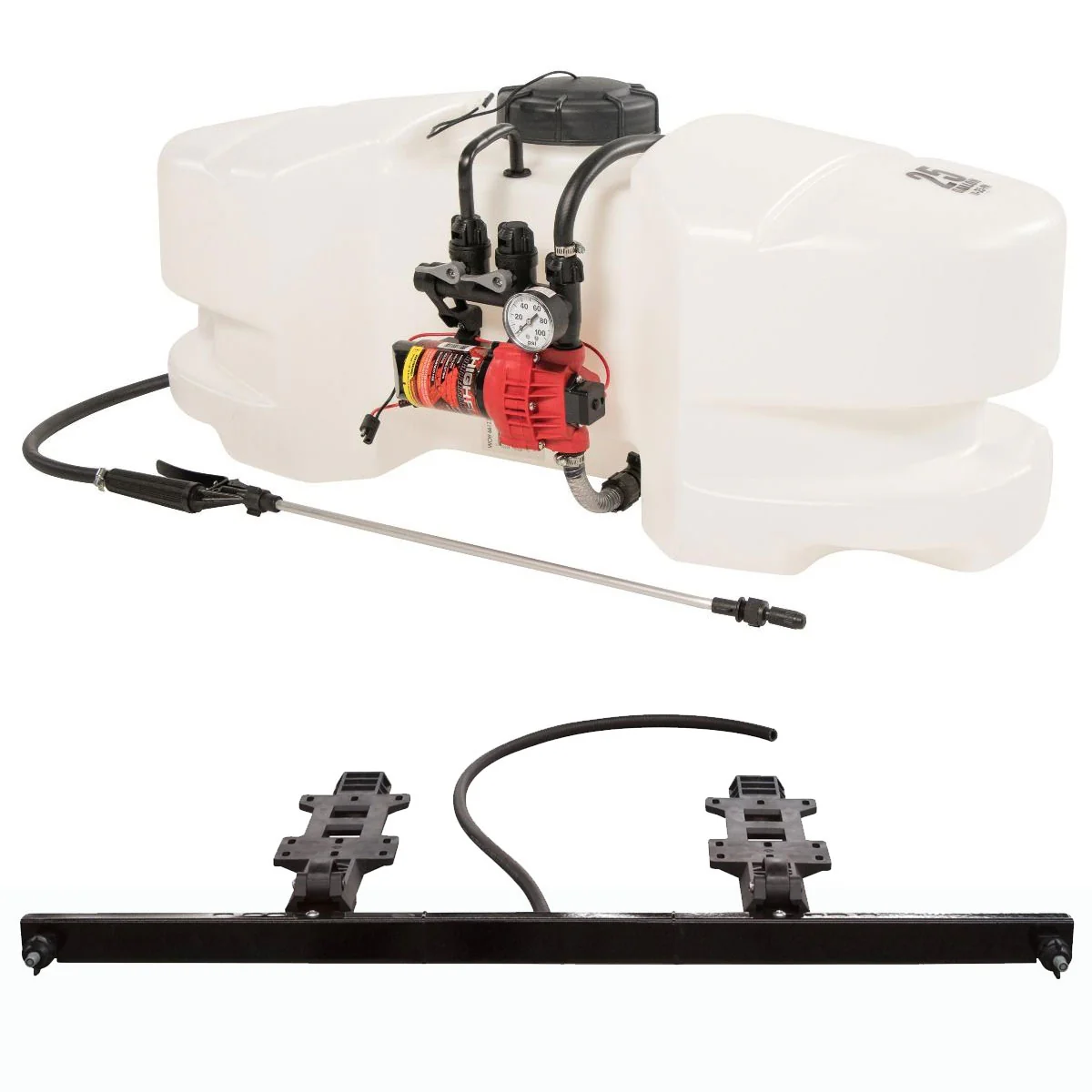

- 2 nozzle boom produces a spray pattern of approx. 2m width. Fitted with 110 degree wide angle spray tip nozzles
- 5 nozzle boom produces a spray pattern of approx. 2.5m width. Fitted with Air Induction low drift nozzles for safer spray application

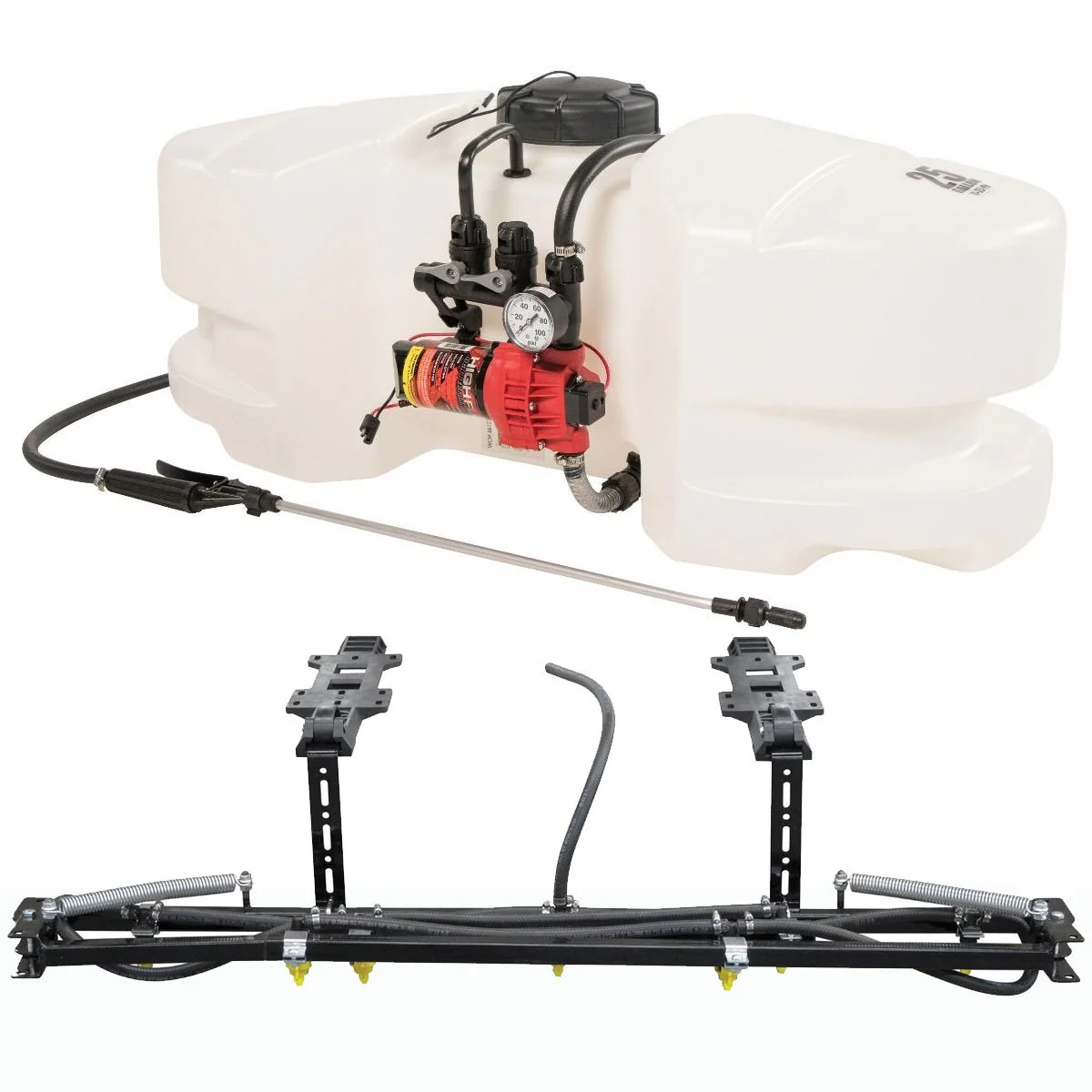

- 7 nozzle booms allows spray pattern of approx. 3.5m width. Fitted with Air Induction, low drift nozzles for safer spray application
- Each boom folds in to a compact 1.3m length
- All booms fitted with mesh, check valve filters, 50#
- Quick release fitting means demounting or attaching is quick & easy. No need to lift the whole tank.
- Wider 5 & 7 nozzle booms are foldable with spring loaded ‚break-back‚ arms
- Actual length of boom is shorter than the spray width
- Ideal for the application of pesticides, herbicides and soluble fertilisers
- Comes with hose and boom mounted fitting kit suitable for ATV‚s or similar
- Optimum boom height 50-60cm above ground to ensure nozzle overlap and a full spray pattern
- Requires some assembly
