Cooper Pegler Series 2000 Knapsack Service Kit Case (283581)

Product image 1
1 / 2

Cooper Pegler Series 2000 Knapsack Service Kit Case (283581)

Never get caught out again with the ultimate double-sided case full of all the essential parts needed to maintain, service and repair your Cooper Pegler 2000 Series knapsack. CP code 283581

Includes spares for the sprayer handle, spray tank parts and 40 replacement nozzles.

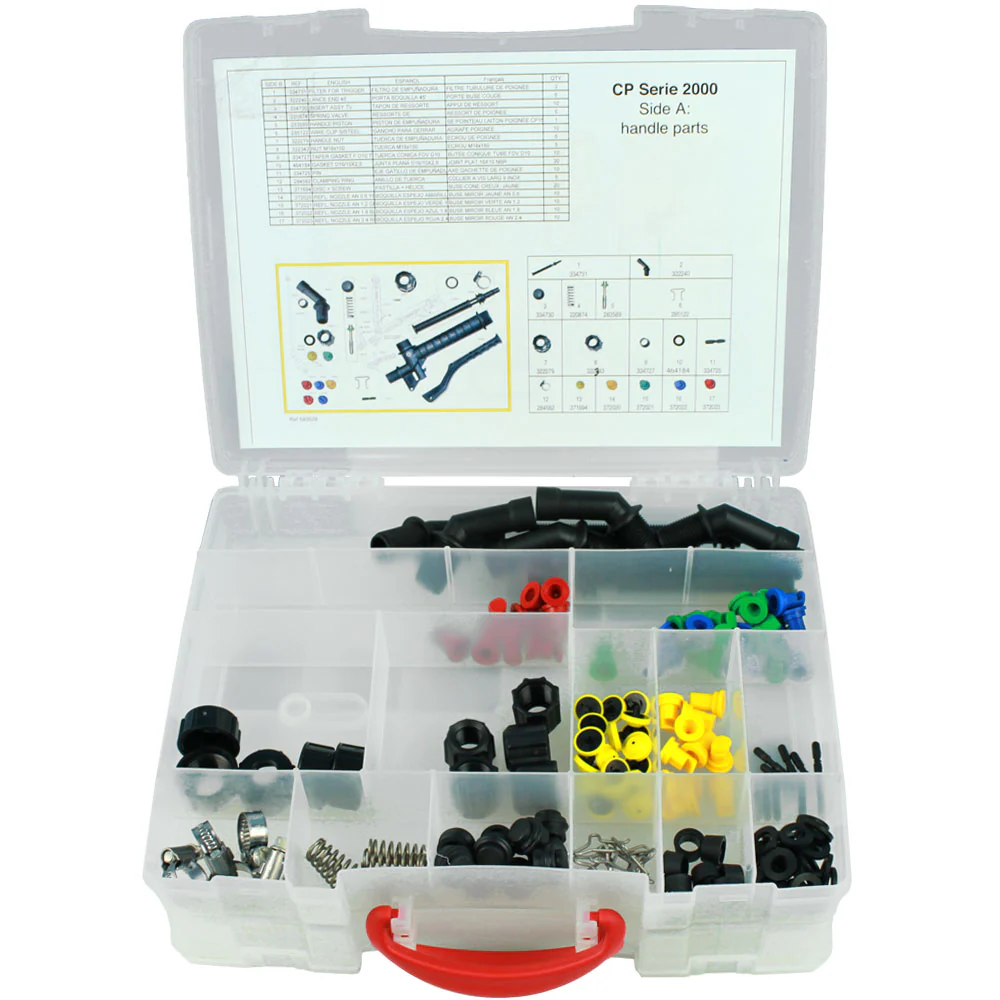

Handle Parts

  • 3 x Filter for trigger, 334731
  • 5 x Lance end 45, 3222240
  • 10 x Insert assy tv, 334730
  • 5 x Spring valve, 220874
  • 1 x Handle piston, 283589
  • 10 x Wire clip s/steel, 285122
  • 5 x Handle nut, 3222279
  • 5 x Nut M18x150, 322343
  • 10 x Taper gasket F D10 tube, 334727
  • 30 x Gasket D16/10x2,5, 464184
  • 10 x Pin, 334725
  • 5 x Clamping ring, 284582
  • 20 x Disc & screw, 371694
  • 10 x Refl. nozzle AN 0.6 yellow
  • 10 x Refl. nozzle AN 1.2 green
  • 10 x Refl. nozzle AN 1.8 blue
  • 10 x Refl. nozzle AN 2.4 red

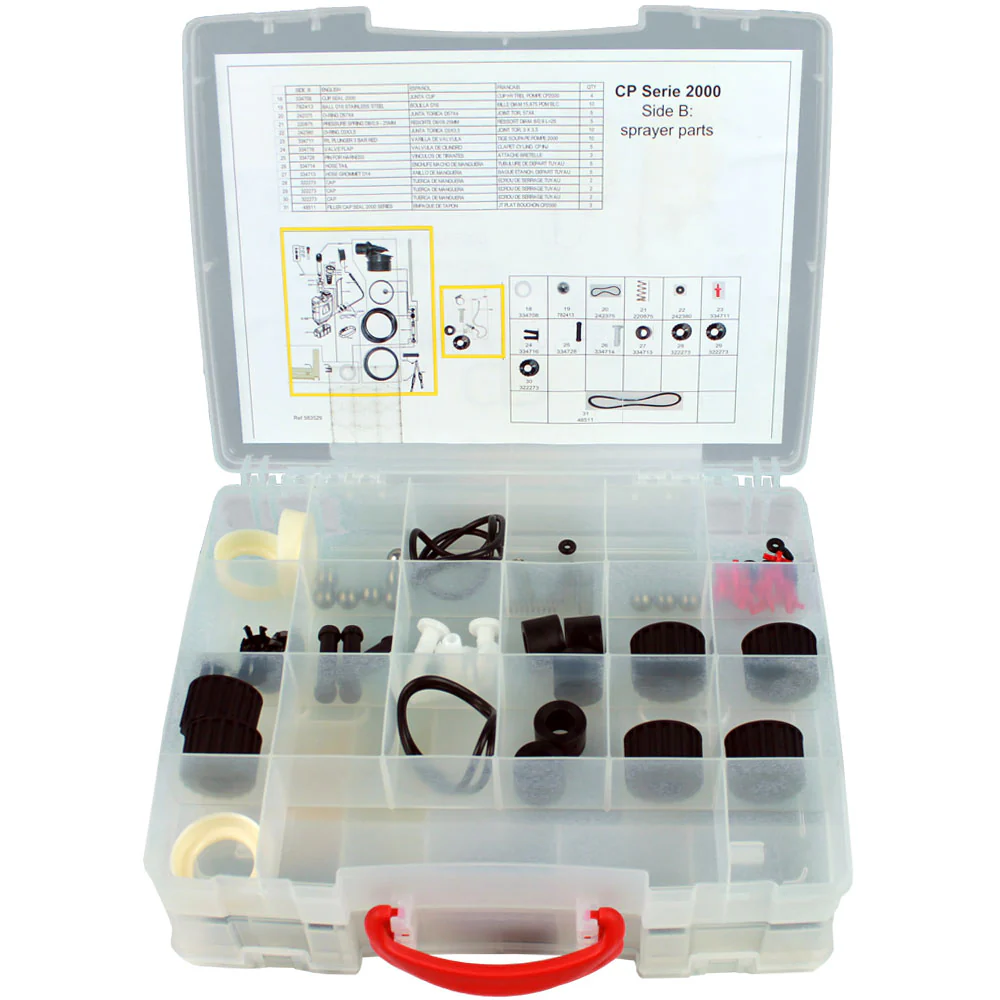

Sprayer Parts

  • 4 x Cup Seal 2000, 334708
  • 10 x Ball D16 s/steel, 782413
  • 5 x O-Ring D57X4, 242375
  • 5 x Pressure Spring D8/0.9-25mm, 220875
  • 10 x O-Ring D3x3.5, 242380
  • P/L Plunger 3 Bar Red, 334711
  • 5 x Valve Flap, 334716
  • 3 x Pin for harness, 334728
  • 5 x Hose Tail, 334714
  • 5 x Hose Grommet D14, 334713
  • 6 x Cap, 322273
  • 3 x Filler Cap Seal, 48511



$193.19
Cooper Pegler Series 2000 Knapsack Service Kit Case (283581)
$193.19

Product Information

Shipping & Returns

Description

Never get caught out again with the ultimate double-sided case full of all the essential parts needed to maintain, service and repair your Cooper Pegler 2000 Series knapsack. CP code 283581

Includes spares for the sprayer handle, spray tank parts and 40 replacement nozzles.

Handle Parts

  • 3 x Filter for trigger, 334731
  • 5 x Lance end 45, 3222240
  • 10 x Insert assy tv, 334730
  • 5 x Spring valve, 220874
  • 1 x Handle piston, 283589
  • 10 x Wire clip s/steel, 285122
  • 5 x Handle nut, 3222279
  • 5 x Nut M18x150, 322343
  • 10 x Taper gasket F D10 tube, 334727
  • 30 x Gasket D16/10x2,5, 464184
  • 10 x Pin, 334725
  • 5 x Clamping ring, 284582
  • 20 x Disc & screw, 371694
  • 10 x Refl. nozzle AN 0.6 yellow
  • 10 x Refl. nozzle AN 1.2 green
  • 10 x Refl. nozzle AN 1.8 blue
  • 10 x Refl. nozzle AN 2.4 red

Sprayer Parts

  • 4 x Cup Seal 2000, 334708
  • 10 x Ball D16 s/steel, 782413
  • 5 x O-Ring D57X4, 242375
  • 5 x Pressure Spring D8/0.9-25mm, 220875
  • 10 x O-Ring D3x3.5, 242380
  • P/L Plunger 3 Bar Red, 334711
  • 5 x Valve Flap, 334716
  • 3 x Pin for harness, 334728
  • 5 x Hose Tail, 334714
  • 5 x Hose Grommet D14, 334713
  • 6 x Cap, 322273
  • 3 x Filler Cap Seal, 48511
